Introduction

Deploying a datacenter that supports GPU superclusters requires careful planning and consideration of various factors including power, cooling, networking, physical space, storage, and management systems. This article explores the key considerations and best practices for building and operating a large-scale GPU datacenter, with a focus on supporting advanced AI workloads.

As AI and high-performance computing (HPC) workloads grow in scale and complexity, the efficiency of datacenters housing these systems becomes increasingly critical. The unique challenges posed by GPU superclusters necessitate innovative solutions, which we will examine in detail throughout this article.

1. Key Physical Components of a GPU Datacenter

Before exploring the specific considerations, it's crucial to understand the key components that make up a large-scale GPU datacenter. These components work in concert to support the intense computational demands of AI and HPC workloads:

• Physical infrastructure: The building, floor space, and structural supports that house the datacenter.

• Power systems: High-capacity distribution and backup systems that fuel the energy-intensive GPU clusters.

• Cooling solutions: Advanced systems, often including liquid cooling, to manage the heat generated by densely packed GPUs.

• Networking infrastructure: High-bandwidth, low-latency networks that facilitate rapid data movement between GPU nodes.

• GPU compute nodes: The core of the datacenter, consisting of thousands of GPUs arranged in high-density racks.

• High-performance storage solutions: Systems that feed data to the GPU clusters at the required speeds.

Each of these components presents unique challenges when scaled to support superclusters. In the following sections, we will explore these challenges and considerations in detail, beginning with the physical layout of the datacenter.

2. Physical Space and Layout Planning

The design of a datacenter for large-scale GPU deployment requires careful optimization of physical space for airflow, accessibility, and security while managing cable density and weight. This section will explore the critical aspects of rack placement, airflow management, and security considerations.

Optimizing Rack Placement and Airflow

High-density GPU racks, especially those hosting 30-50 kW, must be arranged to optimize airflow and cooling. Implementing a hot aisle/cold aisle configuration enhances cooling efficiency by separating hot exhaust air from cold intake air. For liquid-cooled systems, rack placement must allow easy access to coolant piping and management.

In a high-density GPU environment, proper cable management is essential. Engineers need to plan for structured cabling pathways, either under the floor or overhead, to support high-bandwidth networking (e.g., InfiniBand, 200/400 Gbps Ethernet). This approach minimizes signal interference and ensures scalability. The choice of pathways should align with the rack layout to facilitate maintenance and airflow.

Implementing a structured cabling system with clear labeling and documentation is crucial for managing the high density of connections in a GPU-intensive environment. This practice not only aids in troubleshooting but also facilitates future upgrades and expansions.

The layout should enable technicians to access equipment easily for maintenance, including adequate spacing between racks. Well-designed access minimizes disruptions to airflow patterns, which is crucial in tightly packed GPU environments.

Security and Access Control

Physical security is another key consideration in datacenter design. A datacenter housing a supercluster requires robust security measures. Implementing physical security controls such as biometric access, surveillance cameras, and perimeter security is essential.

The physical layout influences how security measures are implemented. For example, aisle configurations and rack orientations impact the placement of surveillance systems and access points. Ensuring secure access controls at the rack level prevents tampering while maintaining accessibility for authorized personnel.

As we move from the physical layout to the power infrastructure, it's important to note that the arrangement of racks and security systems directly impacts the distribution of power and cooling resources throughout the datacenter.

3. Power Infrastructure

The extreme power requirements of modern GPU clusters necessitate a rethinking of traditional datacenter power infrastructure. This section will explore the specific power needs of high-density GPU racks and the systems required to meet these demands efficiently and reliably.

Power Requirements for High-Density GPU Racks

A datacenter housing thousands of GPUs requires a robust power infrastructure capable of delivering reliable and scalable power to support extremely high-density racks. For the most advanced AI and HPC workloads, such as those using systems like the GB200 NVL72, power requirements can reach up to 120 kW per rack. This level of power consumption significantly exceeds that of traditional enterprise datacenters, where rack power consumption typically ranges from 3-5 kW for low-density configurations to 15-30 kW for what was previously considered high density.

These high power densities necessitate specialized power distribution systems with sufficient capacity, redundancy, and management capabilities. High-capacity power distribution systems must be implemented with appropriately sized circuit breakers, conductors, and distribution panels. The electrical infrastructure must be designed to handle not just the current load but also potential future increases in power density.

Three-Phase Power Distribution Units (PDUs)

Power Distribution: High-capacity power distribution systems are essential for ensuring continuous operation of AI superclusters. Three-phase Power Distribution Units (PDUs) play a critical role in managing power in high-density datacenters. Three-phase power consists of three alternating currents of the same frequency and voltage amplitude, but offset from each other by one-third of a period. This configuration allows for more efficient power delivery compared to single-phase systems.

In GPU-intensive environments, three-phase power offers several advantages:

1. Higher Power Capacity: Three-phase systems can deliver more power with greater efficiency, allowing for smaller and less complex wiring while reducing power losses.

2. Load Balancing: In high-density configurations where power requirements can exceed 100 kW per rack, three-phase power distribution provides better load balancing across all phases, helping maintain a stable and efficient power supply.

3. Space Efficiency: Three-phase PDUs support higher power densities per rack, making them ideal for GPU-intensive applications where power consumption is high and space efficiency is critical.

4. Intelligent Monitoring: Modern three-phase PDUs are equipped with monitoring capabilities that allow real-time tracking of power usage, load balancing, and proactive fault detection, ensuring uninterrupted operations.

To ensure uptime for critical workloads in these high-density scenarios, a 2N redundancy model is implemented, where each rack is supplied by two independent power feeds, is often necessary. This approach, combined with Automatic Transfer Switches (ATS), allows for seamless switching to backup power in case of a primary power failure, thereby protecting the sensitive and high-value GPU operations. The ATS should be capable of transferring loads within milliseconds to prevent any disruption to the GPU workloads.

Uninterruptible Power Supplies (UPS)

Uninterruptible Power Supplies (UPS) play a crucial role in maintaining power stability in high-density GPU datacenters. A UPS system provides immediate backup power during power interruptions, ensuring that critical systems continue to operate without interruption. This capability is particularly important for workloads involving AI and HPC applications, where even a brief power disruption can lead to significant data loss or model training setbacks.

For high-density GPU racks with power draws of up to 120 kW, UPS systems must be carefully sized to handle the entire load for several minutes, allowing enough time for backup generators to come online. The UPS not only serves as a bridge during power failures but also conditions incoming power to protect against spikes, surges, or other anomalies that could damage sensitive components.

Sustainability and Utility Collaboration

With the increasing focus on sustainability, integrating renewable energy sources (e.g., solar, wind) becomes both a challenge and an opportunity when dealing with such high power consumptions. While renewables can help offset the high power consumption of dense GPU clusters, the intermittent nature of these sources requires careful planning and integration with traditional power sources to ensure reliability. Direct Power Purchase Agreements (PPAs) for green energy can be an effective strategy for datacenters to source sustainable power at the scale required for these high-density deployments.

The extreme power requirements of systems like the GB200 NVL72 also necessitate close collaboration with utility providers. Custom power contracts, dedicated substations, and potentially even grid enhancements may be necessary to ensure consistent and reliable delivery of power at this scale.

As we transition from power infrastructure to cooling systems, it's important to recognize that the two are inherently linked. The high power density of GPU clusters directly translates to significant heat generation, making efficient cooling solutions critical for maintaining optimal performance and reliability.

4. Cooling Infrastructure Design

The high power density of modern GPU clusters generates an unprecedented amount of heat, making efficient cooling a paramount concern in datacenter design. This section explores the various cooling strategies and technologies employed in high-density GPU environments.

Managing heat dissipation in high-density GPU clusters is one of the most critical aspects of datacenter design. Engineers must consider both traditional air-cooling methods and more advanced liquid cooling solutions. Traditional air-cooling systems like CRAC (Computer Room Air Conditioning) and CRAH (Computer Room Air Handler) units must be carefully configured. A hot aisle/cold aisle layout can maximize cooling efficiency by separating hot exhaust from cold intake air. However, air cooling has its limits as GPU density increases, often necessitating supplemental cooling solutions (e.g., in-row cooling).

Liquid Cooling

Liquid cooling, including direct-to-chip and immersion cooling, offers a more efficient way to manage the heat generated by high-density GPU racks. This method removes heat directly from the source, resulting in higher cooling efficiency and reduced need for large-scale airflow management.

Implementing a liquid cooling system requires careful integration of chillers, heat exchangers, and coolant distribution units (CDUs). Chillers provide the primary cooling source, typically capable of handling loads of 30-50 kW per rack or more for high-density GPU systems. Heat exchangers, both at the facility level and within the racks, transfer heat from the internal liquid cooling loop to the external cooling system. CDUs regulate coolant flow to maintain optimal temperatures, typically keeping inlet temperatures to the racks between 20°C and 25°C.

The liquid cooling infrastructure must be scalable to accommodate future expansions. This involves designing piping layouts that can support additional racks without significant retrofitting, ensuring long-term flexibility and efficiency.

5. Networking Infrastructure

Networking infrastructure is vital for ensuring that data can move between GPU nodes at high speeds with minimal latency, which is crucial for the performance of AI and HPC workloads. This section explores the key considerations in designing and implementing networking solutions for GPU superclusters.

Length of Interconnect Cabling and its Impact on Latency

The length of interconnect cabling directly impacts latency in SuperClusters. Even fiber-optic cables, while providing fast transmission, introduce propagation delays as data travels long distances across racks and nodes. For example, a 100-meter fiber-optic cable introduces a delay of approximately 0.5 microseconds.

To mitigate this:

• Shorter cable runs are used whenever possible, reducing overall signal travel time.

• Switches and networking hardware are placed closer to high-traffic racks to minimize the distance data must travel.

• Redundant cable paths ensure that if a primary link experiences congestion or failure, traffic can be rerouted without introducing significant delays.

These strategies help maintain low-latency communication, which is essential for synchronizing GPUs across a SuperCluster. Low-latency networking is crucial for ensuring that parallel processing tasks are efficiently synchronized, particularly in AI workloads that require frequent communication between nodes.

Strategic Placement of Networking Equipment

Datacenter designers must consider various options for switch placement:

• In-Rack Switches: Integrated switches, often placed at the top (ToR) or mid-rack, handle intra-rack communication and reduce external cabling. However, they increase power and cooling needs, requiring careful planning to avoid hotspots.

• Dedicated Networking Racks: Used for network aggregation, these racks house larger switches and routers. Strategically placed to optimize traffic flow and minimize cable lengths, they often include intelligent PDUs and environmental monitoring.

• End-of-Row Switches: Larger switches at row ends simplify cabling and aggregate traffic from ToR switches, reducing cable length and signal integrity issues.

Cable Management

Cable management is a significant challenge in this deployment. Each rack requires multiple high-speed connections, leading to tens of thousands of cables. A robust cable management system is essential, including structured cabling pathways (either under the floor or overhead), high-capacity cable trays, and clear labeling and documentation systems. Effective cable management not only ensures proper connectivity but also facilitates troubleshooting and future upgrades, which is crucial for the long-term operation of the datacenter.

Power Distribution for Networking Equipment

High-density networking equipment consumes significant power, with each networking rack potentially drawing 10-20 kW or more. This power draw must be integrated into the overall power distribution system of the datacenter. Intelligent PDUs handle the load, provide necessary redundancy, and offer remote monitoring and control capabilities to manage power usage in real-time. Networking power requirements must be included in the datacenter's overall power distribution plan to ensure balanced power delivery and minimize potential bottlenecks.

The design of the networking infrastructure directly impacts the overall energy efficiency of the datacenter. As we move to the next section, we'll explore how these various systems come together to affect the Power Usage Effectiveness (PUE) of the facility.

6. Power Usage Effectiveness (PUE) Optimization

Power Usage Effectiveness (PUE) is a critical metric for assessing datacenter energy efficiency. In the context of high-density GPU clusters, maintaining or improving PUE becomes even more challenging due to the extreme power and cooling requirements. This section explores strategies for optimizing PUE in GPU-intensive environments.

Best-in-Class PUE Benchmarks

Understanding what constitutes a "best-in-class" PUE is crucial for setting appropriate efficiency goals in high-density GPU datacenters. Here are some benchmarks and practical interpretations:

1. Best-in-Class PUE Range:

• For traditional datacenters: 1.2 to 1.5

• For cutting-edge, hyperscale datacenters: 1.1 or lower

• For high-density GPU datacenters: Typically 1.2 to 1.4, due to higher cooling demands

2. Practical Interpretation:

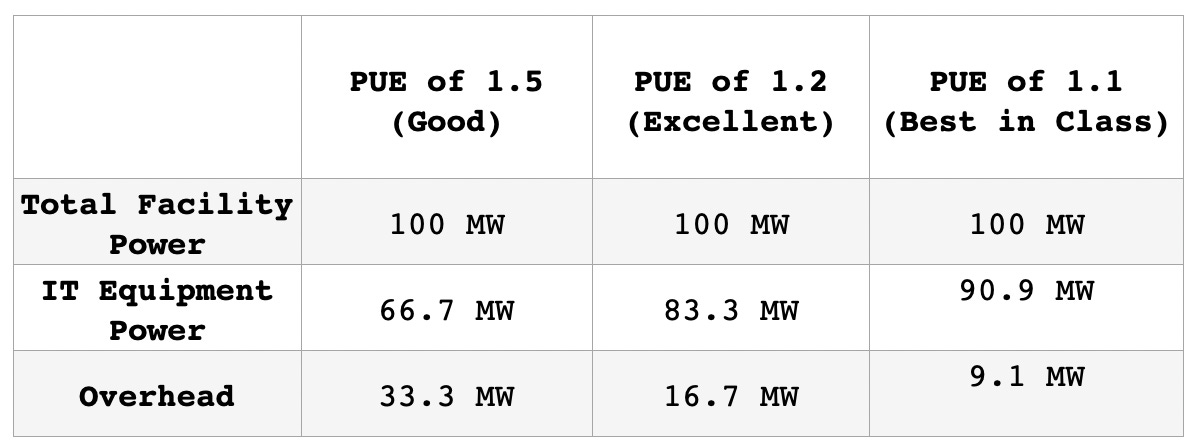

Let's consider a 100-megawatt (MW) datacenter to illustrate what these PUE values mean in practical terms:

Note: Overhead includes cooling, lighting, etc.

3. GPU-Specific Considerations:

In a high-density GPU environment, achieving a PUE of 1.2 would be considered excellent due to the intense cooling requirements. This means that for every 1.2 watts of total facility power, 1 watt goes directly to the GPU clusters and other IT equipment.

Strategies for Improving PUE in GPU-Intensive Environments

Here are key strategies to optimize PUE in GPU-intensive environments:

1. Leverage Liquid Cooling: Maximizing the use of liquid cooling can significantly reduce cooling energy consumption. Compared to traditional air cooling, liquid cooling can decrease cooling energy by up to 30%, potentially lowering PUE by 0.1 to 0.2 points. This is particularly effective for high-density GPU racks where air cooling struggles to keep up with heat generation.

2. Heat Reuse: Implementing heat reuse strategies can dramatically improve overall energy efficiency. For instance, the 35°C output water from GPU cooling systems can be repurposed for office heating or other facility needs. This approach not only offsets heating costs but also improves total facility efficiency, contributing to a lower PUE.

3. Optimize Workload Scheduling: Intelligent workload management systems can balance computational loads and cooling demands across the GPU cluster. By avoiding cooling power spikes and maintaining steady, efficient operation, this strategy could potentially improve PUE by 0.05 to 0.1 points. This is particularly relevant for AI and HPC workloads that can be scheduled flexibly.

4. High-Efficiency UPS Systems: Upgrading to modern Uninterruptible Power Supply (UPS) systems with efficiency ratings of 97% or higher can significantly reduce power losses. In a high-power GPU environment, upgrading from a 92% efficient UPS to a 97% efficient one could improve overall PUE by about 0.05 points. This improvement is amplified in GPU datacenters due to the high power densities involved.

5. Airflow Management: While liquid cooling is often necessary for GPU components, implementing stringent airflow management practices for non-GPU components can further improve cooling efficiency. Good airflow management practices can reduce cooling needs by 5-10%, potentially improving PUE by 0.02 to 0.05 points. This includes optimizing cable management, using blanking panels, and ensuring proper hot aisle/cold aisle separation.

6. Dynamic Cooling Adjustment: Implement intelligent cooling systems that can dynamically adjust based on real-time load and environmental conditions. This can include variable speed fans, adaptive liquid cooling flow rates, and smart CRAC/CRAH units. Such systems can optimize cooling delivery to match the actual heat generated by the GPU clusters, avoiding overcooling and improving overall PUE.

7. High-Efficiency Power Distribution: Use high-efficiency transformers and power distribution units (PDUs) to minimize power losses in the electrical infrastructure. In high-power GPU environments, even small improvements in power distribution efficiency can have a significant impact on overall PUE.

PUE and Datacenter Location/Climate

The relationship between PUE and datacenter location/climate is significant and can greatly impact the overall efficiency of a GPU supercluster facility:

1. Ambient Temperature: Cooler climates generally allow for better PUE as less energy is required for cooling. This can be particularly beneficial for high-density GPU clusters that generate significant heat.

2. Free Cooling Opportunities: Locations with cool, dry air can utilize free air cooling for much of the year, significantly reducing cooling energy requirements. This can be a major advantage for large-scale GPU deployments.

3. Water Availability: Regions with access to cold water sources can use this for cooling, improving efficiency. This is particularly relevant for liquid-cooled GPU systems.

4. Humidity Levels: Dry climates can more easily use evaporative cooling techniques, which are very energy-efficient but require significant water usage. This trade-off must be carefully considered in water-scarce regions.

5. Seasonal Variations: PUE can vary seasonally, especially in locations with significant temperature fluctuations between summer and winter. This variability must be accounted for in the datacenter design and operational planning.

For instance, a datacenter in a cool, dry climate might achieve a PUE of 1.1 in winter using free air cooling, but this could rise to 1.3 in summer when mechanical cooling is needed. Conversely, a datacenter in a hot, humid climate might struggle to achieve a PUE below 1.4 even with advanced cooling technologies.

These location and climate considerations play a crucial role in the site selection process for GPU supercluster datacenters. The ideal location balances favorable climate conditions, access to renewable energy sources, and proximity to necessary infrastructure and talent pools.

7. Case Study: Build-out on NVIDIA GB200 Grace Blackwell Superchip

Specifications and Rack Configuration:

• Each GB200 module contains 2 GPUs

• 36 GB200 modules per rack, totaling 72 GPUs

• Each rack consumes 120 kW

Performance Characteristics:

• FP8 performance per GPU: Approximately 11,000 TFLOPS (estimated based on available information)

• FP8 performance per rack: ~792,000 TFLOPS (11,000 TFLOPS * 72 GPUs)

Datacenter Example with GB200:

Consider a 100 MW facility with a PUE of 1.2:

• IT equipment power: ~83.3 MW

• Assuming 90% of IT power goes to GPU racks: ~75 MW for GPU racks

• Number of GB200 racks: 625 (75 MW / 120 kW per rack)

• Total number of GPUs: 45,000 (22,500 modules * 2 GPUs per module)

• Theoretical peak performance for FP8: ~495 EFLOPS (45,000 GPUs * 11,000 TFLOPS)

Energy Efficiency Metrics:

• Performance per watt: ~6.6 TFLOPS/W for FP8 (495 EFLOPS / 75 MW)

Innovative Cooling Strategies: Return to Copper

One of the most innovative aspects of the GB200 NVL72 design is NVIDIA's approach to managing its immense 120kW power consumption while maintaining an optimal PUE. A key strategy in this effort is the strategic use of copper interconnects instead of optical connections.

Copper vs. Optical: While optical connections offer high bandwidth, they require optical transceivers for signal conversion. These transceivers generate substantial heat, which would further strain the already challenged cooling system in a 120kW rack.

Advantages of Copper:

• Lower heat generation: Copper interconnects produce significantly less heat than optical transceivers.

• Reduced power consumption: This contributes directly to a lower overall power draw and improved PUE.

• Simplified cooling infrastructure: Less heat generation means less complex and energy-intensive cooling solutions are needed.

Impact on PUE: By reducing both power consumption and heat generation through the use of copper interconnects, NVIDIA effectively lowers the cooling demand. This directly contributes to a better PUE for the entire system, as less energy is required for cooling relative to the compute power available.

8. Physical Build Considerations for Large-Scale GB200 NVL72 Deployments

The deployment of thousands of NVIDIA GB200 NVL72 racks in a single supercluster presents unprecedented challenges in datacenter design and construction. This section explores the physical ramifications and technical considerations of such massive deployments.

Rack Density and Layout Limitations

The extreme power density and weight of GB200 NVL72 racks necessitate a reevaluation of traditional datacenter layouts. Each rack, consuming 120 kW of power and weighing over 2,000 kg (4,400 lbs), imposes significant constraints on rack arrangement and floor loading.

Key limitations include:

1. Maximum Racks per Row:

• Weight considerations often limit rows to 10-15 racks.

• Power distribution limitations may further reduce this to 8-12 racks per row.

• Cooling requirements might necessitate even shorter rows of 6-10 racks to ensure adequate heat dissipation.

2. Floor Loading Capacity:

• Standard datacenter floors (typically rated for 12-15 kN/m² or 250-300 lbs/ft²) are insufficient.

• GB200 NVL72 racks require floors rated for 20-25 kN/m² (400-500 lbs/ft²) or higher.

• Significant floor reinforcement is necessary, often involving:

  • Thicker concrete slabs (30-40 cm or 12-16 inches)

  • Additional support pillars or a more robust underlying structure

  • Specialized vibration dampening systems

Thought Exercise: Power and Footprint for a 72,000 GPU Supercluster

To further illustrate the scale and challenges involved in deploying next-generation AI infrastructure, let's consider a hypothetical supercluster composed of 1,000 NVIDIA GB200 NVL72 systems, totaling 72,000 GPUs. This exercise demonstrates the extreme power and space requirements for a large-scale deployment of cutting-edge AI hardware.

1. System Specifications:

• GB200 NVL72: 72 Blackwell GPUs + 36 Grace CPUs per rack

• Power Consumption: 120 kW per rack (compute)

• Weight: >2,000 kg per rack

• Cooling: Direct-to-chip liquid cooling

2. Power Requirements:

• Total Compute Power: 120 MW (1,000 racks x 120 kW/rack)

• Additional Power: 5 MW (estimated for networking, storage, and cooling)

• Grand Total: 125 MW

This power requirement of 125 MW is comparable to the electricity consumption of a small city. It necessitates substantial power infrastructure, likely requiring dedicated power substations and multiple redundant power feeds. The scale of power consumption also emphasizes the critical importance of energy efficiency measures and potentially the integration of on-site power generation capabilities.

3. Floor Space and Layout:

• Racks per Row: 8 maximum (limited by weight, power distribution, and heat dissipation)

• Aisle Width: 5 feet (for airflow and maintenance)

• Rack Dimensions: 2.5 ft wide x 4 ft deep

• Number of Rows: 125 (1,000 racks / 8 racks/row)

• Data Center Dimensions: ~1,000 ft x 50 ft (50,000 sq ft total area), including perimeter space

The physical footprint of this supercluster is substantial, requiring a data center building that is approximately 1,000 feet long and 50 feet wide. This layout is driven by the need to distribute the extreme weight of the racks (over 2,000 kg each) and to manage power delivery and cooling for each row of racks. The limitation of 8 racks per row is crucial for maintaining manageable power distribution and cooling within each row.

This thought exercise underscores the unprecedented scale of power consumption and physical space required for next-generation AI infrastructure. It highlights the need for purpose-built facilities that can handle extreme power densities and manage the associated thermal loads. The sheer scale of such a deployment also emphasizes the importance of modular, scalable design approaches that can accommodate phased deployment and future expansions.

9. Retrofitting Existing Datacenters

Retrofitting established datacenters for GB200 NVL72 deployments presents a formidable challenge. The extreme requirements of these cutting-edge GPU clusters often exceed the design parameters of conventional datacenters in several key areas:

• Floor Loading: Existing floors typically can't support racks weighing over 2,000 kg each.

• Power Distribution: Traditional systems struggle with power draws up to 120 kW per rack.

• Cooling Systems: Conventional air cooling is inadequate for the intense heat generated.

• Liquid Cooling Infrastructure: Many facilities lack the necessary plumbing and distribution systems.

These limitations stem from the unprecedented demands of high-density GPU clusters, which far exceed the design parameters of most existing facilities. The lack of necessary liquid cooling infrastructure further complicates retrofitting efforts, often requiring significant modifications to the facility's core systems.

Despite these challenges, limited retrofitting might be possible through targeted approaches. Facility managers might consider creating 'islands' of high-density computing within the existing datacenter, allowing for incremental upgrades to power and cooling systems. This approach focuses resources on specific areas rather than overhauling the entire facility. Another strategy involves using containment systems to isolate high-density areas from standard deployments, enabling more targeted cooling and power distribution solutions while minimizing impact on existing infrastructure.

These strategies can allow facilities to incorporate some high-density GPU capabilities without a complete rebuild. However, for large-scale deployments, the limitations of retrofitting often point towards the need for purpose-built facilities.

10. New Purpose-Built Facilities

For extensive deployments of GB200 NVL72 systems, purpose-built facilities often become necessary. These datacenters are designed from the ground up to meet the extreme demands of next-generation GPU clusters, featuring:

• Advanced liquid cooling systems integrated throughout the entire infrastructure

• High-capacity power distribution engineered to deliver megawatts per row

• Innovative airflow management incorporating heat reuse systems

• Modular designs allowing for easier expansion and future upgrades

These purpose-built datacenters strive for maximum efficiency despite the intense power consumption of high-density GPU clusters. Their power distribution systems are engineered to meet the energy requirements of these GPU clusters, while innovative airflow management and heat reuse systems aim to maximize energy efficiency.

The modular design approach ensures that these facilities can adapt to future technological advancements. This forward-thinking design ensures that the investment in these specialized datacenters continues to pay dividends as AI and HPC technologies evolve.

11. Key Considerations for New Builds

When constructing a new facility for GB200 NVL72 deployments, several critical factors must be carefully considered to ensure optimal performance and scalability.

Site selection is paramount, with key criteria including proximity to abundant and reliable power sources, access to large volumes of water for cooling systems, and strong ground stability to support the extreme weight of equipment. These requirements often necessitate close collaboration with utility providers or even the construction of dedicated power substations.

The structural design must be robust, featuring reinforced concrete slabs or specialized flooring systems capable of supporting extreme loads. Ceilings must be engineered to support heavy cable trays and cooling pipes, while corridors need to be wide and tall to accommodate the movement of large, heavy equipment.

Cooling infrastructure is integral to the design, requiring:

• Dedicated spaces for large-scale liquid cooling systems (chillers, cooling towers)

• Extensive piping networks for distributing coolant throughout the facility

• Heat recapture systems to improve overall energy efficiency

Power systems in these facilities are on a scale rarely seen in traditional datacenters, often including on-site substations, redundant power feeds, and expansive spaces dedicated to UPS systems and backup generators.

The networking infrastructure must support the high-bandwidth, low-latency requirements of GPU clusters, necessitating extensive cable management systems and dedicated spaces for core networking equipment and fiber distribution.

Throughout all aspects of the design, scalability remains a key consideration. The rapid pace of advancement in AI and HPC technologies demands that these facilities be adaptable, with modular designs allowing for phased deployment and future expansions.

12. Future Considerations

As AI and HPC workloads continue to evolve, datacenter designs must adapt to meet future challenges. This section explores emerging trends and considerations that are likely to shape the future of GPU supercluster datacenters.

1. Increased Power Densities: Future GPU generations are likely to push power densities even higher, requiring more advanced cooling and power distribution solutions. Datacenters may need to be designed to handle power densities exceeding 150-200 kW per rack, necessitating innovations in cooling technologies and power delivery systems.

2. Modular and Scalable Designs: Future datacenters may adopt more modular designs, allowing for rapid deployment and easier scaling. This could include prefabricated datacenter modules or even containerized high-density compute units that can be quickly added or replaced.

3. Immersion Cooling Advancements: As power densities increase, more datacenters may adopt advanced immersion cooling technologies. This could lead to radical changes in rack design and datacenter layout, potentially allowing for even higher compute densities.

4. Energy Storage Integration: To manage peak loads and improve grid stability, datacenters may incorporate large-scale energy storage solutions. This could include advanced battery systems, flywheels, or even novel technologies like superconducting magnetic energy storage.

5. Sustainability: Increasing emphasis on renewable energy sources, circular economy principles in hardware lifecycle, and overall carbon footprint reduction.

Conclusion

Building and operating a datacenter for superclusters requires a holistic approach that considers the interplay between power, cooling, networking, and computational efficiency.

Key takeaways from this article include:

• The critical importance of PUE optimization in high-density environments

• The need for innovative cooling solutions, including the strategic use of liquid cooling and copper interconnects

• The balance between performance, efficiency, and sustainability in datacenter operations

• The trend towards purpose-built facilities designed specifically for extreme computational densities

• The growing importance of flexibility and scalability in datacenter design to accommodate rapid technological advancements

As we conclude this exploration of datacenter build-out considerations, we've seen how the physical infrastructure forms the critical foundation for AI superclusters.

In our next article, Article 19, "Site Selection for City-Scale Computing" we’ll dive into location considerations such as cooling efficiency, power delivery, compliance with data regulations and environmental sustainability.
